Underwater Camera System For Use With Reach Poles

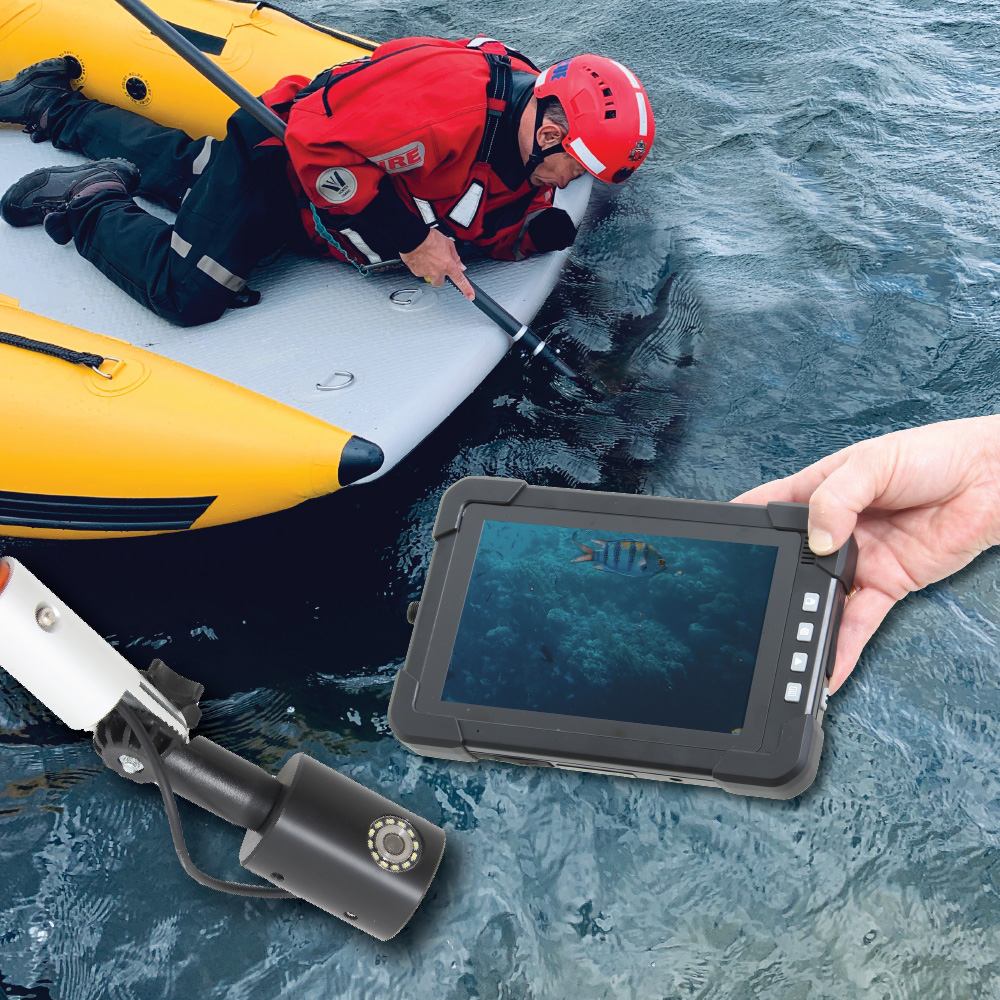

The camera system can be used with our telescopic reach poles (available in 4.5m, 6m, 9m, 15m and 18m) for searching/inspecting underwater. The underwater system offers a rechargeable battery supply with up to 5 hours battery life, and the option of a 7" TFT colour monitor with a digital video recorder. It has a powerful LED torch with a 23mm camera head for hard-to-reach area searching. The illumination from the LED light provides clarity at depth and maintains crisp colour images.

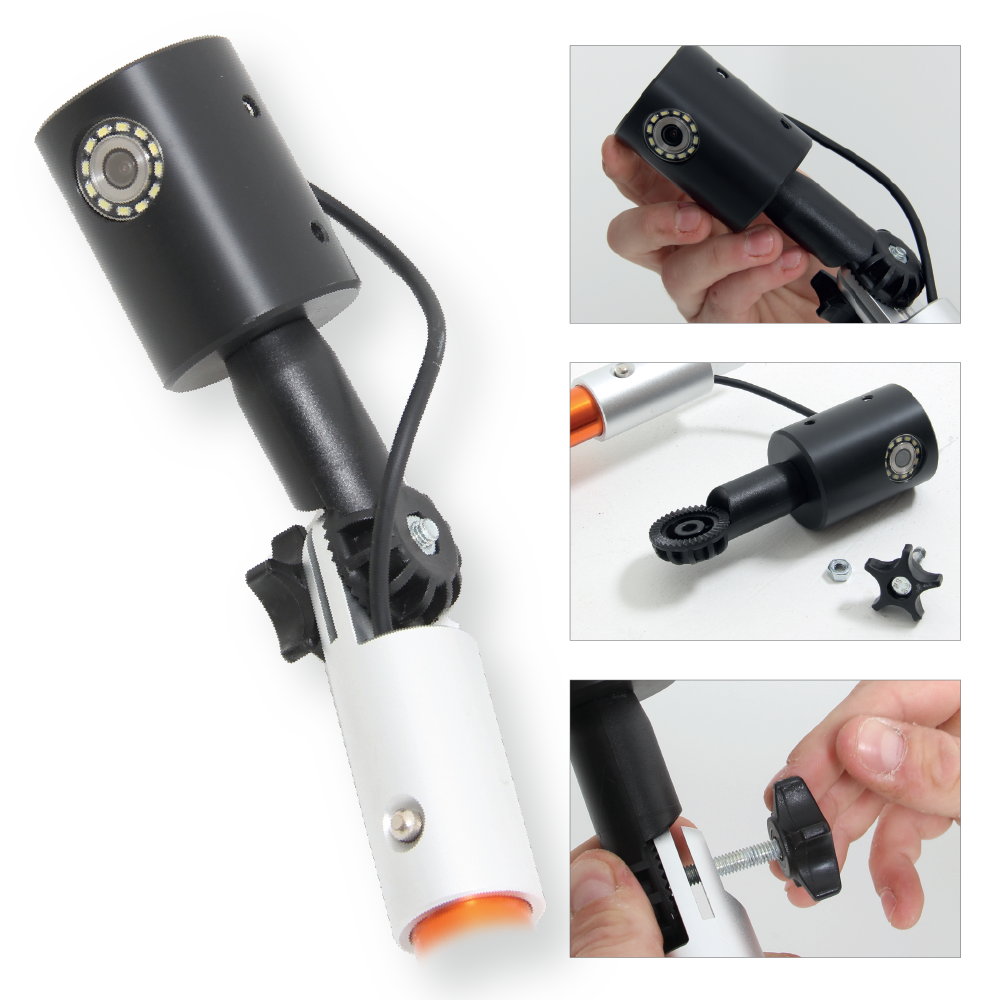

Lightweight and very easy to use, the underwater camera system has been designed with safety in mind. The cable is neatly stowed within the telescopic pole and slides freely with the movement of the pole. The fully adjustable underwater camera head offers a 360-degree view meaning you have complete control over your search.

Easy to use and quick to deploy, this is an essential tool for any underwater search.

FEATURES

• Submersible camera for use with our rugged telescopic poles.
• A bright LED torch illuminates murky waters to aid you in searches.
• Ideal for searching and inspecting underwater areas.
• Fully portable.
• Colour monitor with record facility.
• Easy to use.
• Outstanding quality and durability.
• For daily use in tough conditions.
• Utilises a powerful, rechargeable lithium-ion battery.
• Displays its findings via a clear 7" TFT display.

IDEAL FOR PROFESSIONAL USE
• Underwater search & rescue teams.
• Boat inspection.
• Harbour wall or marina inspections.
• Tank inspections.
• Underwater safety inspections.
• Fish farm maintenance & observation.
• Marine surveyors and engineers.

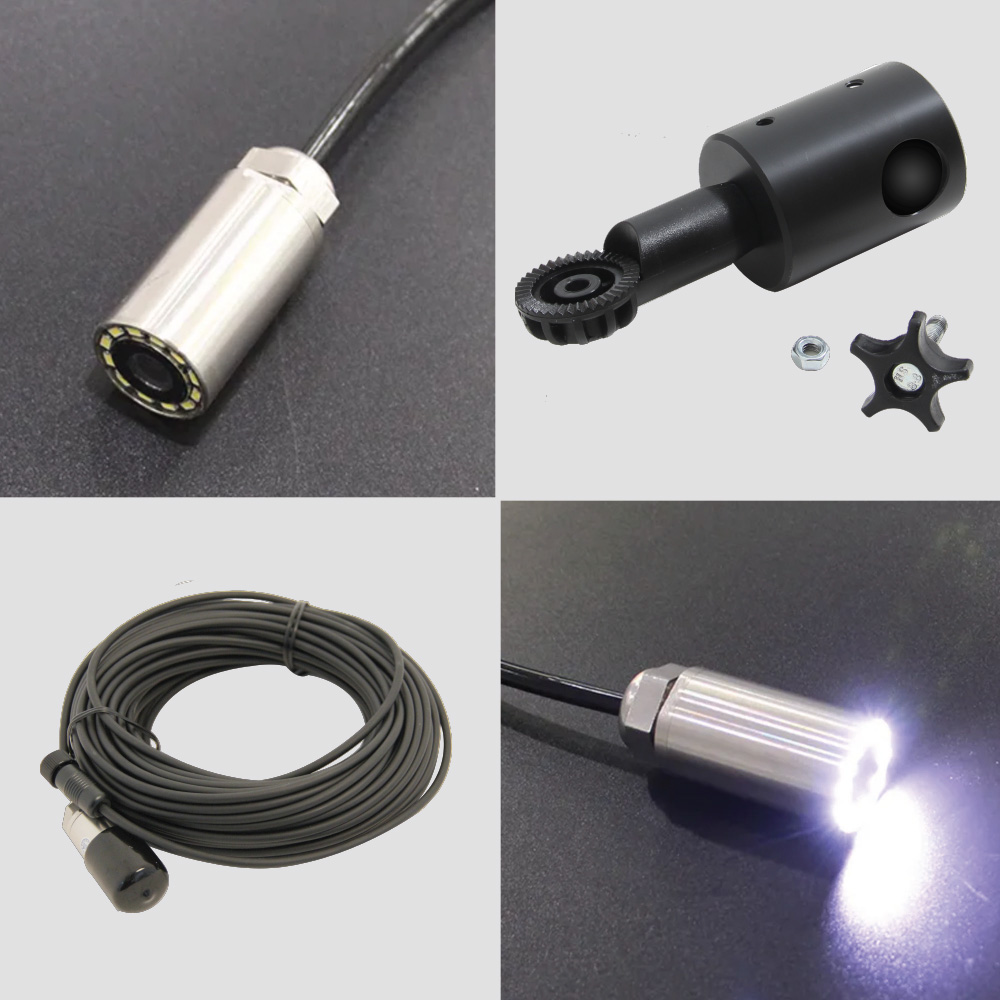

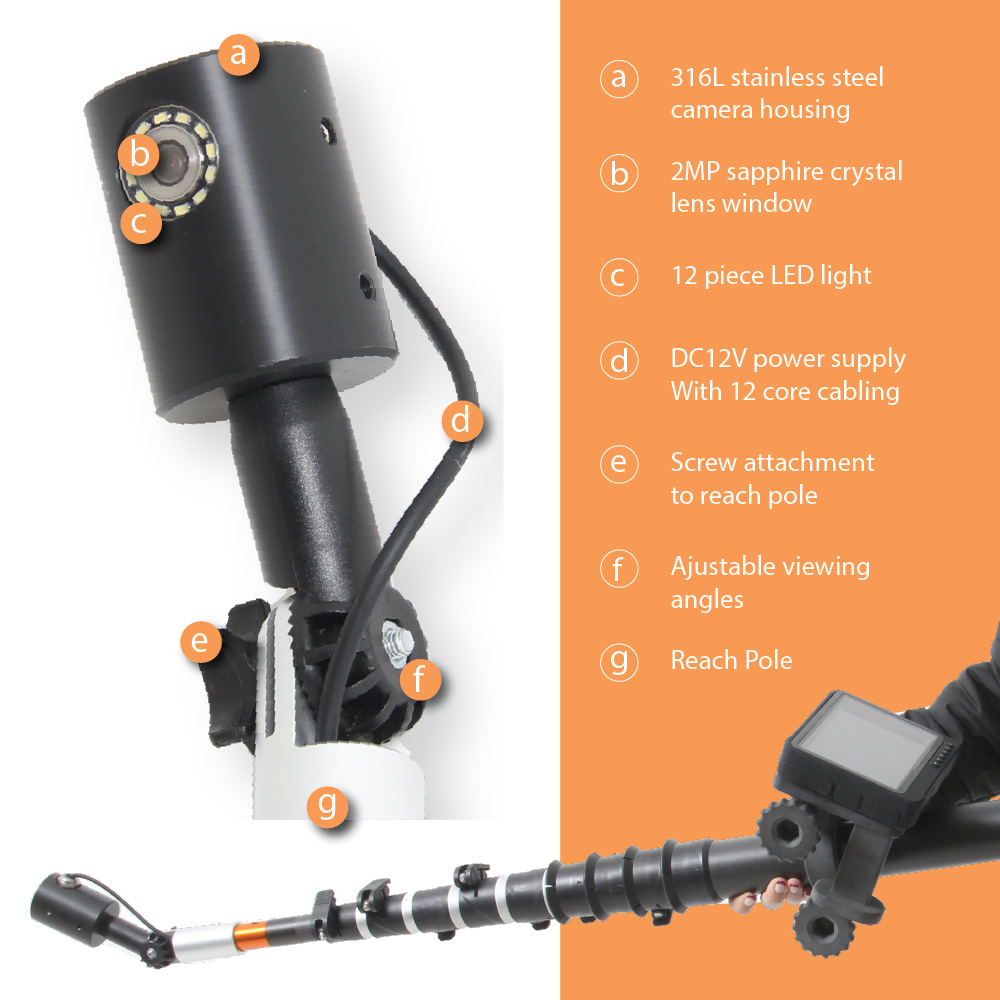

UNDERWATER CAMERA FEATURES

• Water pressure: 50m
• Sensor: 2MP sapphire crystal lens window
• Camera housing: 316L stainless steel
• Image sensor: Sony
• Signal system: PAL/NTSC
• Effective pixels: 1920(H)*1080(V)
• Min. illumination: 0.0001Lux@F1.2
• Angle of view: 140° lens
• LED: 12pc light
• Focus distance: 5cm-1000cm
• Video frame rate: AHD PAL: 1080p@25fps AHD NTSC: 1080p@30fps
• Video output:1080P HD-AHD default, 1.1Vp-p composite output (75Ω/BNC)
• S/N ratio: 65dB
• White balance: auto
• Operating conditions: -20°C - 60°C
• Power supply: DC12V (supplied by monitor)
• Power consumption: 1W max.
• Cable: 1-200m, 5.0mm, 12cores or 201-500m, 7.5mm, 12 cores
• Dimensions: Φ23*53mm

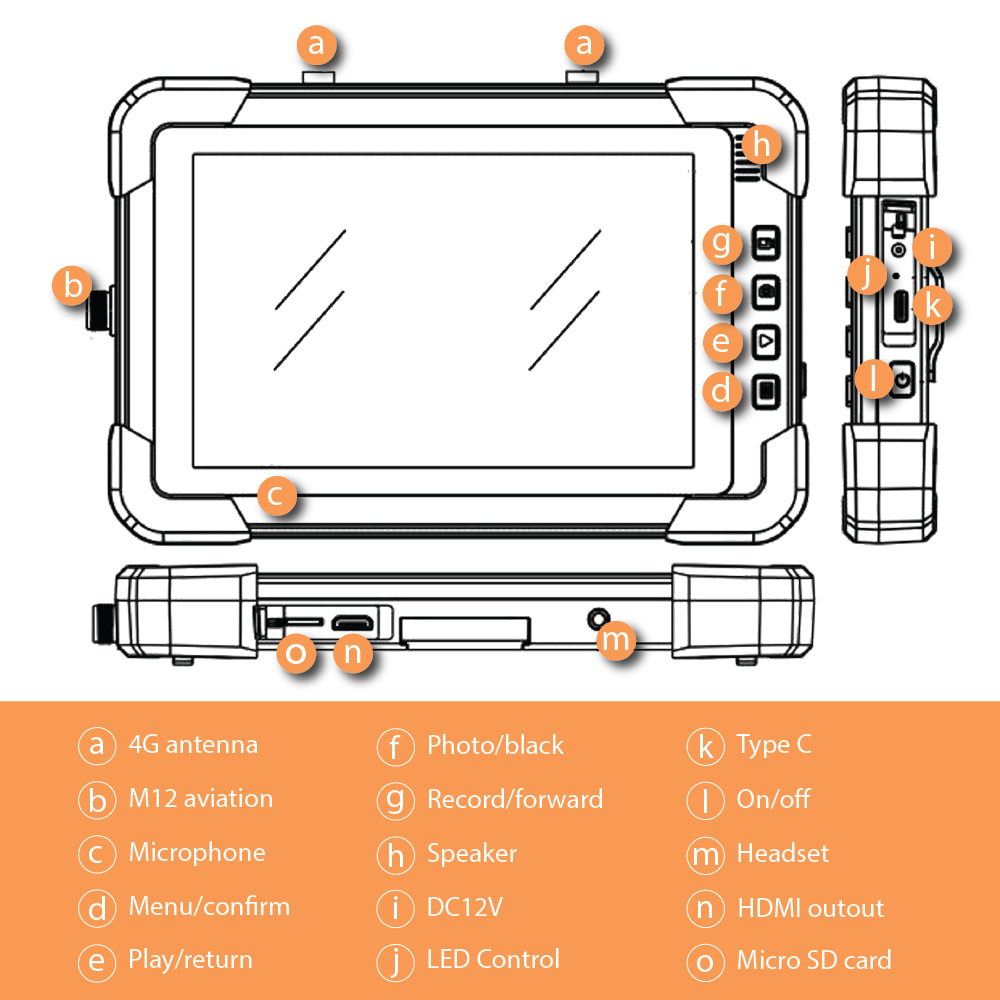

PORTABLE DVR MONITOR FEATURES

Display

• 7” full view (1024 x 600pixel) HD screen
• View angle: 170 degrees
• Brightness: 500 cd/m

Video

• 4x zoom monitoring
• Video input: HD – TV1, HD-CV1, AHD, CVBS 4 in 1 video balun (provides 12VDC output for camera)
• Response: <0.1s
• Power output: 12V 300MA
• Video LED control output: LED on/off
• Video record & storage pixels (16:9): 1080P (1920*1080), 480P (720*480)
• 800m HD TV1 1080P 75-5 signal reliable transmission
• Video compress: H.264 encoding
• Video storage format: AVI
• Supports loop/no loop recording
• Support for composite video output

Audio

• Support earphone monitoring
• Audio frequency range: 20Hz – 20KHz AAC
• Audio compression format: AAC

Photo & Storage

• Photo storage format: JPG 5.0M, 3M, 2M, 1.3M, VGA for option
• External SD card: TF card 2-128GB (optional)
• 128GB recording time: approx. 18 hrs

Operating System

• PC: Windows and Mac OS
• Port: USB 2.0

Language

• Supports multi-language.
• English, German, French, Italian, Portuguese, Spanish, Korean, Japanese, Chinese and Russian

Power & Battery

• Working voltage: DC:5-12V
• Working current: 2A
• Built-in Li-battery: 7500mAh
• Working time: >5 hours
• Power-saving mode: auto off screen

Dimensions

• L*W*H: 178*122*32mm
• Weight: 350g

PLEASE CONTACT THE SALES TEAM FOR MORE INFORMATION OR A DEMO ON THIS PRODUCT.
