MILITARY RESCUE COMMERCIAL RETAIL

Home Inflatables Inflatable Lightweight Boats with Inflatable Floors (VIBs) or Air Decks DS320 Inflatable Boat With Air Inflatable Hull
DS320 Air - Harleyford
VIB-BOAT-FEATURES

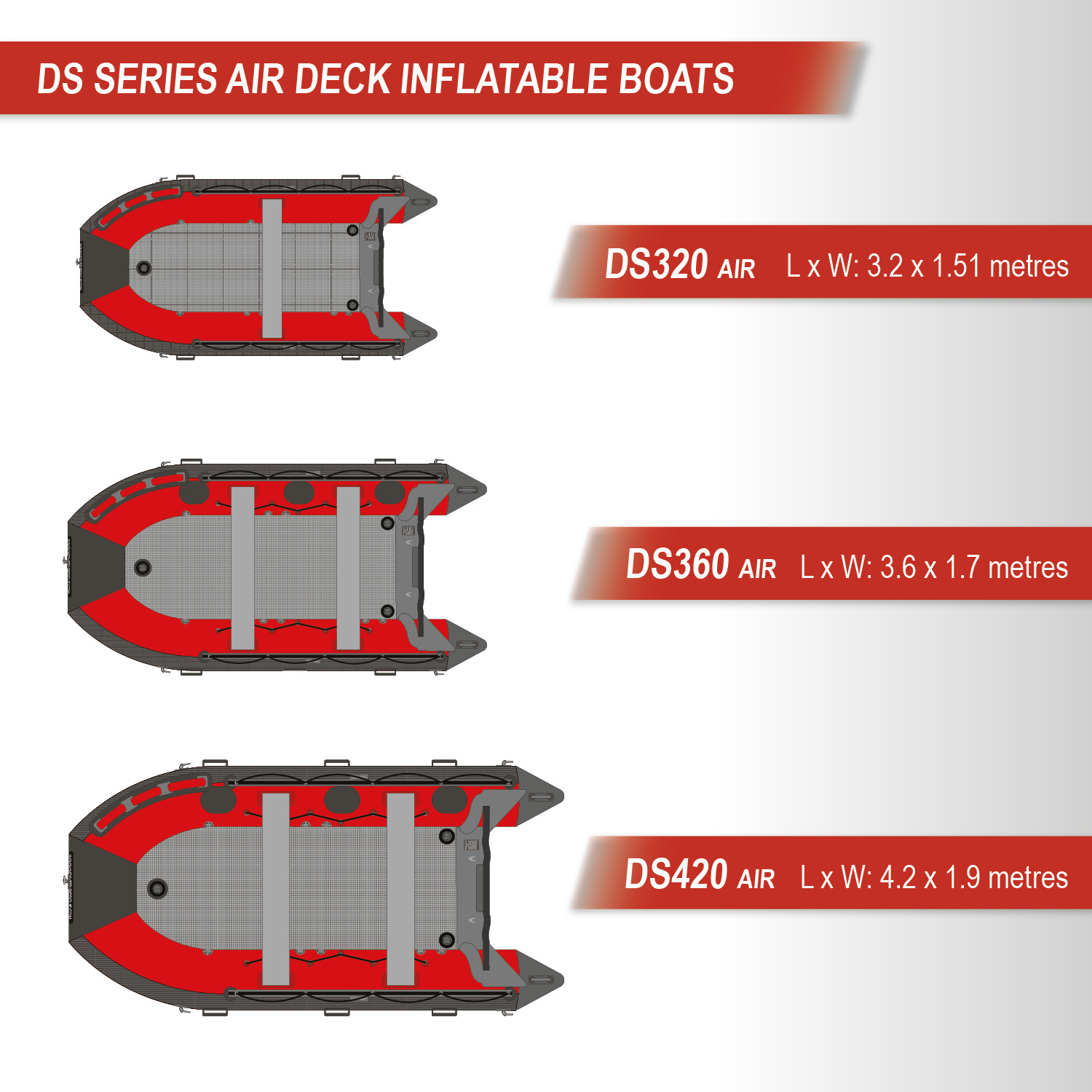

vib-boat-models

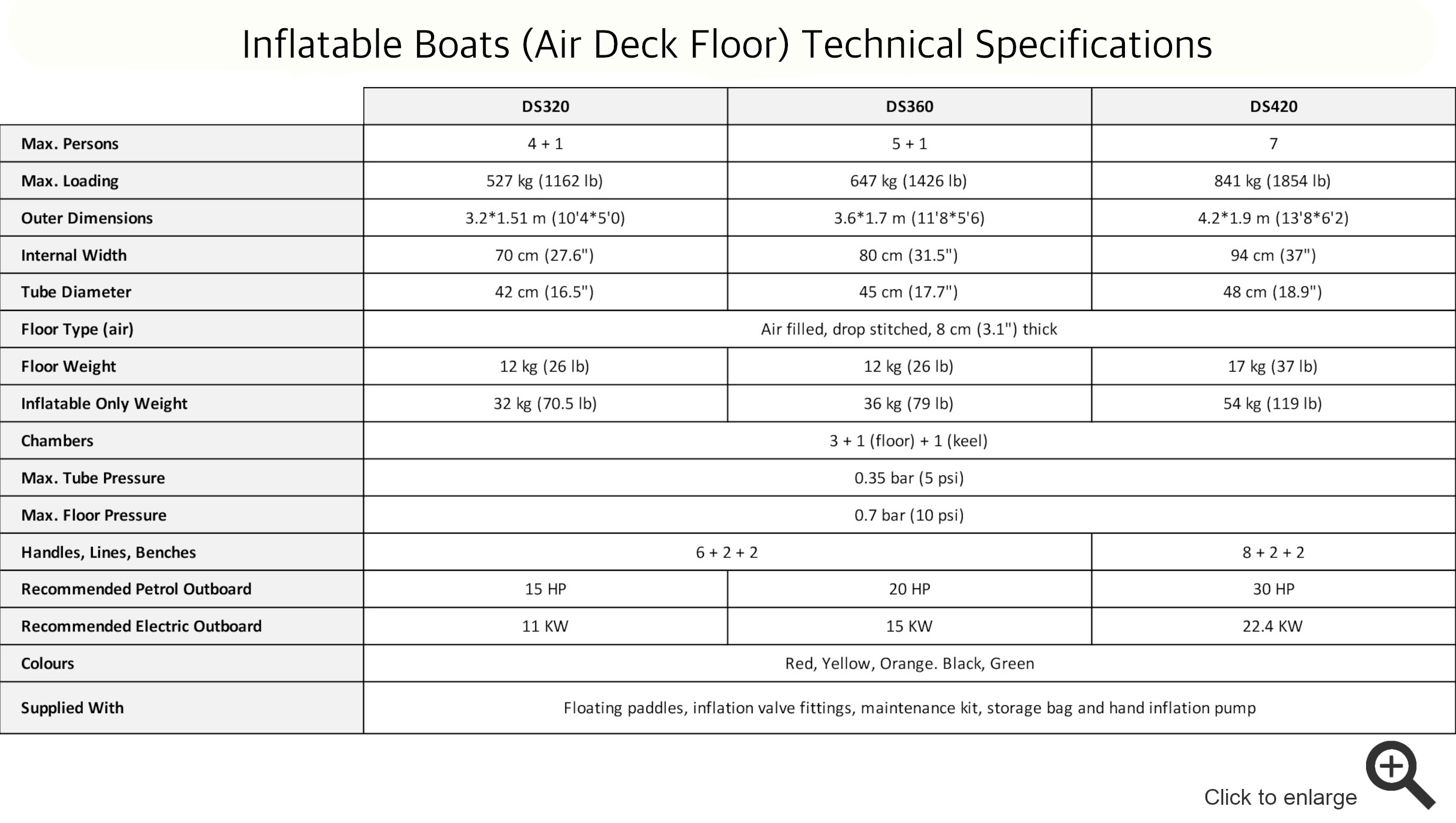

DS Air Series Technical Specifications Chart (click to expand)

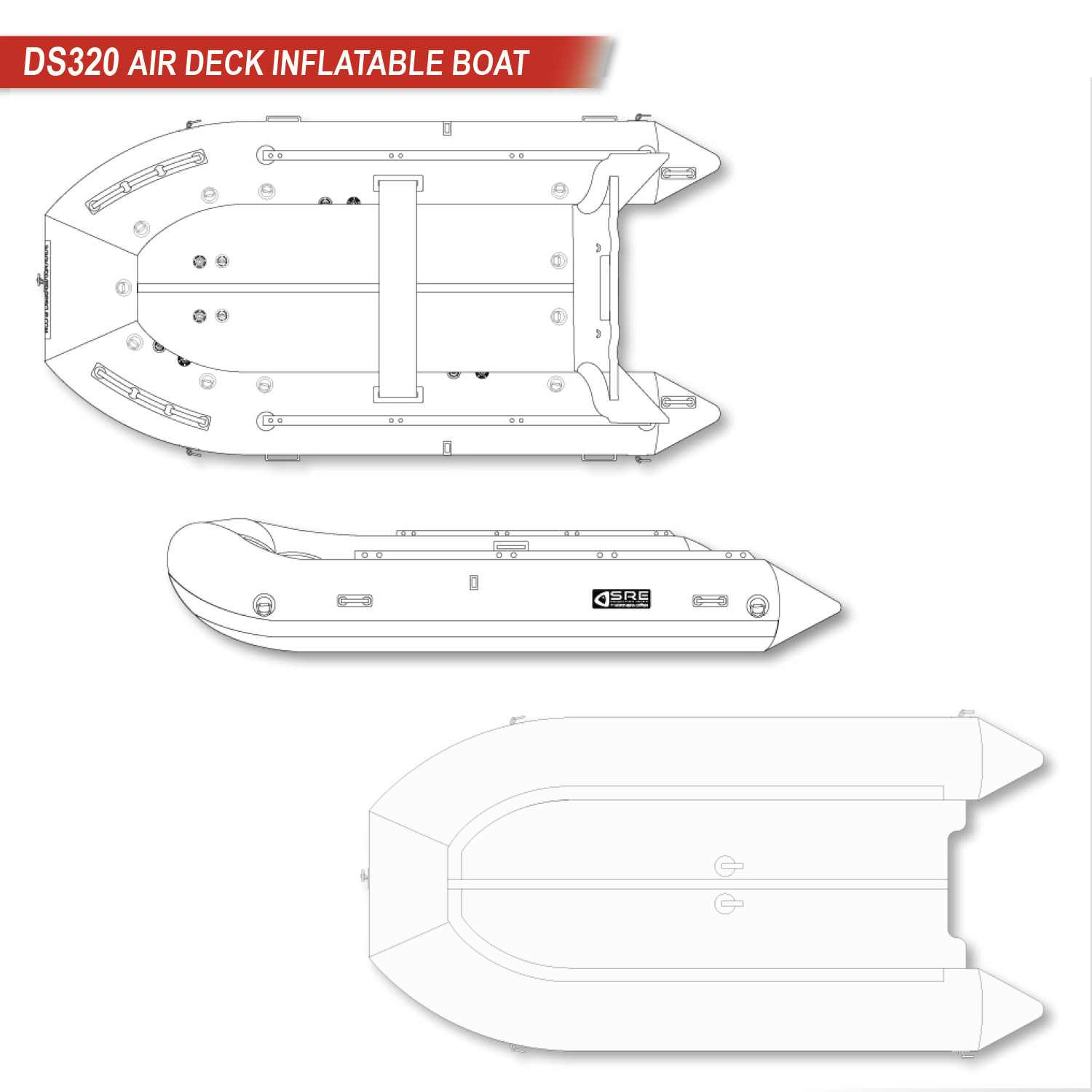

DS320-VIB-DRAWING
Included with the DS Air Series: 2 T-Paddles (floating) (165cm) - Inflation Valve Fittings - Maintenance Kit - Storage Bag - Hand-inflation Pump
Book your team's demonstration day now!

DS320 Inflatable Boat With Air Inflatable Hull

Rating

0 out of 5 stars

Product Information

£1330.00 inc VAT

Low in stock

Key Features

  • Lightweight, compact design with inflatable floor
  • Suitable for shallow waters with easy handling and launching
  • Dimensions: 3.2m length, 1.52m width, 42cm tube diameter
  • Capacity: 4 +1, 527kg max load
  • 3 inflatable chambers plus 2 for the floor
  • Max. outboard: 15HP or Electric 11kW
  • Supplied with bench seat, paddles, foot inflator, carry bag, and maintenance kit

Description

Model: DS320 Air Series

The Northern Diver inflatable-floored DS320 inflatable boat is both lightweight and heavy duty. This highly responsive and manoeuvrable boat is fitted with a marine plywood bench, safety-line ropes, carry handles, and stainless steel D-rings. It's supplied in a carry bag with two paddles, a maintenance kit, and a foot-pump inflator. The lightweight inflatable hull series with DWF is easily transportable by a two-man crew. The floor panels, when inflated, come together to give the boat a keel. The DS Air Series are easy to carry, stow and fold. All boats in this series come complete with keel rubbing strake, and have a lifting handle that’s also a towing eye. The DWF system of drop threads between two flat rubber composites gives a high pressure, fully flat surface–practically as strong as a traditional aluminium floor, but without the extra weight.
BOATS ON PRE-ORDER
Please note boats that are on pre-order may incur additional fees to the amount shown. If you are interested in a boat that is showing on pre-order, please contact the team BEFORE placing your order.
DS320 AIR SERIES SPECS

|     Max. Persons  | 5
|     Max. Loading  | 527 kg (1162 lbs)
|     Outer Dimensions  | 3.2*1.51 m (10'4"*5'0")
|     Internal Width  | 70 cm (27.6")
|     Tube Diameter  | 42 cm (16.5")
|     Floor Type (air)  | Air-inflated; Drop-stitched; 8 cm (3.1") thick
|     Floor Weight  | 12 kg (26 lbs)
|     Inflatable Only Weight  | 32 kg (70.5 lbs)
|     Chambers  | 3 + 1 (floor) + 1 (keel)
|     Max. Tube Pressure  | 0.35 bar (5 psi)
|     Max. Floor Pressure  | 0.7 bar (10 psi)
|     Handles, Lines, Benches  | 6 + 2 + 2
|     Recommended Petrol Outboard  | 15 HP
|     Recommended Electric Outboard  | 11 KW
|     Colours  | Red, Yellow, Orange, Black, Green
|     Material Options | PVC, Hypalon

BOAT FEATURES
  • High quality, commercial grade PVC / Hypalon
  • Marine plywood bench x2
  • Life lines x2
  • Stainless steel D-rings
  • Oar locking system
  • Grab handles x6/8
  • Inflatable, drop-stitched floor panels
  • Outboard-ready marine transom
WHAT'S INCLUDED?
  • 165cm (65") T-bar floating paddles x2
  • HP2 inflation hand pump
  • Inflation valve fittings
  • Maintenance kit
  • Storage bag
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
OPTIONAL BOAT ADDITIONS
⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯
Prices shown are for PVC boats. If you require a Hypalon boat please send an enquiry to the team.

For further information, you can download the manuals or information sheets, or get in touch with our sales team.


Reviews

There are currently no reviews for this product

Downloads

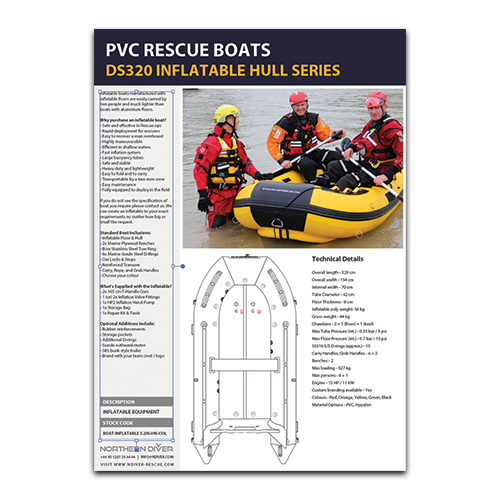

DS320 Air VIB Data Sheet
